• Rear axle, 3.23 ratio
• Pickup bed
• Air filter, heavy-duty
• Hill Descent Control (Requires 4WD model.)
• Auto-locking rear differential
• Transfer case, two-speed, electronic Autotrac with push button control (4WD models only)
• Denali Premium Suspension with Adaptive Ride Control
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Trailer brake controller, integrated
• Recovery hooks, chrome
• Cargo tie downs (12), fixed, rated at 500 lbs per corner
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capless Fuel Fill
• Exhaust, dual with premium tips
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) multi-dimensional polished aluminum
• Tires, 275/60R20SL all-terrain, blackwall (Standard on 4WD models. Available as a free flow option on 2WD models.)
• Tire, spare 255/80R17SL all-season, blackwall
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Wheelhouse liners, rear
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color lower
• Bumper, rear body-color with corner steps
• CornerStep, rear bumper
• Assist steps, Chrome wheel to wheel
• Moldings, window surround, Chrome
• Grille (Signature Denali grille with high gloss Black mesh and Chrome inserts.)
• Headlamps, LED reflector (high intensity) with LED turn signals and LED signature Daytime Running Lamps
• Fog lamps, LED
• Taillamps, LED signature taillight with LED stop and reverse light
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming puddle lamps, side perimeter lighting and memory
• Mirror caps, chrome
• Window, power, rear sliding with rear defogger
• Glass, deep-tinted
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob
• Tailgate, GMC MultiPro Tailgate with six functional load/access features
• Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
• Tailgate and bed rail protection caps, top
• Door handles, chrome
• Bed Liner, Spray-on Pickup bedliner with GMC logo (does not include spray-on liner on tailgate due to Black composite inner panel) (Denali logo replaces GMC logo. Deleted with (PCP) Denali CarbonPro Edition. Available with Ship Thru codes (VBE), (VCO), (VDT), (VYC) or (VYS).)

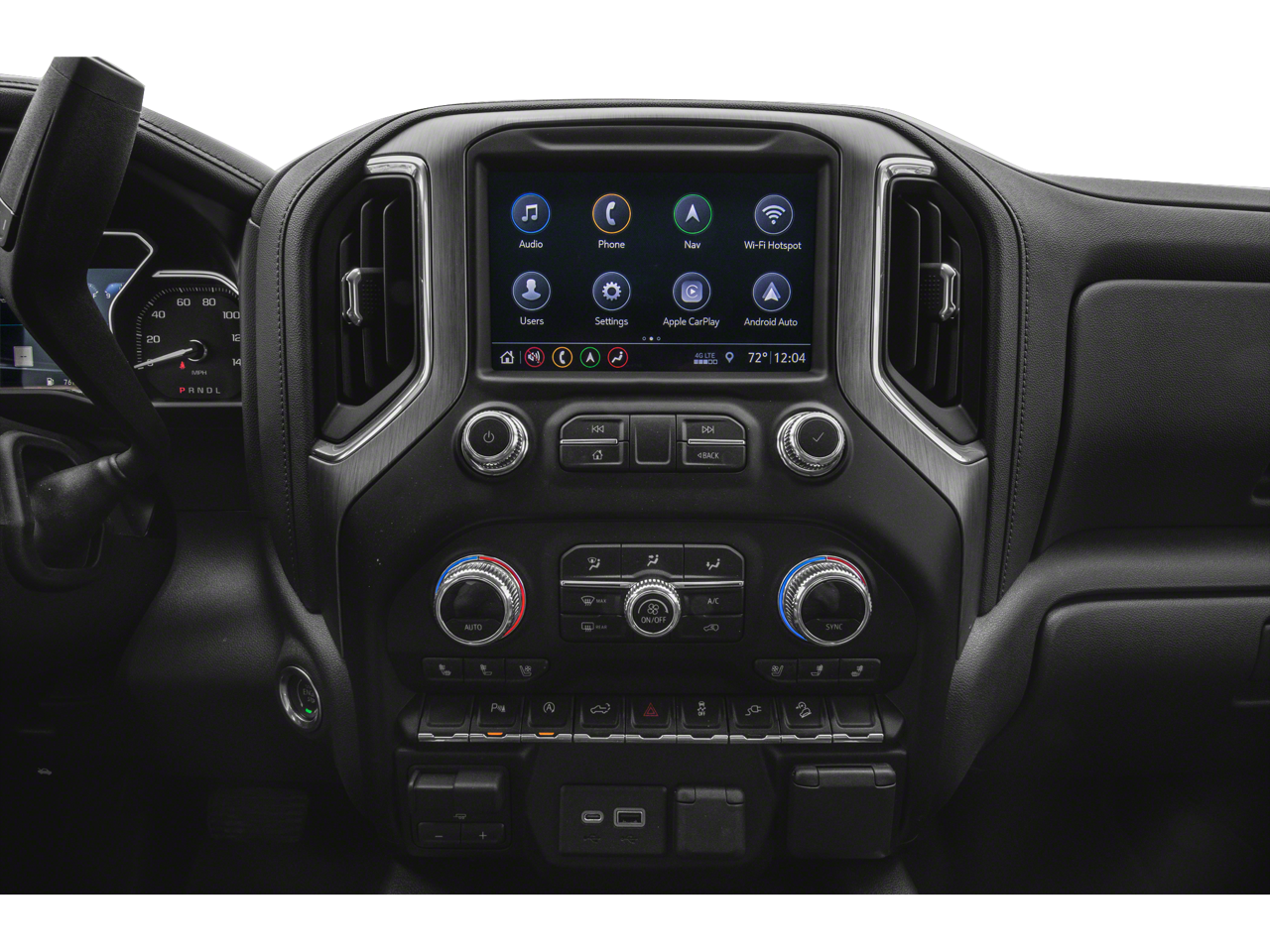

• Audio system, Premium GMC Infotainment System with Navigation and 8" diagonal color touch-screen, includes multi-touch display, AM/FM stereo Bluetooth® streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings. Includes greater memory (Note: (PZ8) Hitch Guidance with hitch view is included with trim.)
• HD Radio (Standard on vehicles built before 7-12-2021. Certain vehicles built on or after 7-12-2021 will include (RG0) Not Equipped with HD Radio, which removes (U2L) HD Radio. See dealer for details.)
• SiriusXM Radio
• SiriusXM with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the All Access package for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the All Access package, you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
• Bose Sound System, premium 7-speaker system with Richbass woofer
• Bluetooth® for phone connectivity to vehicle infotainment system
• Wireless Phone Projection, for Apple CarPlay and Android Auto
• Steering wheel audio controls
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

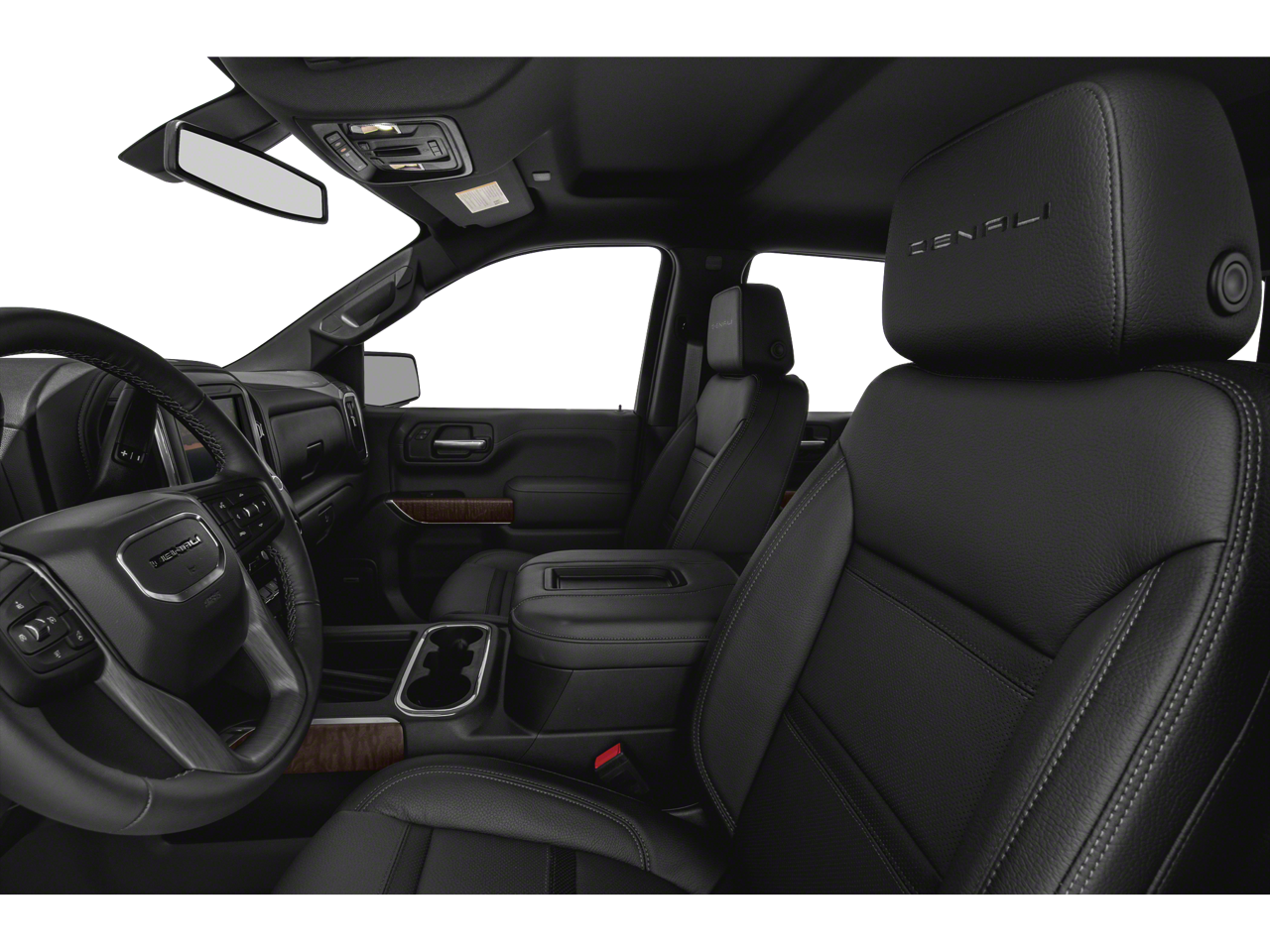

• Seats, front bucket with center console
• Seat adjuster, driver 10-way power including lumbar
• Seat adjuster, passenger 10-way power including lumbar
• Seating, heated driver and front outboard passenger
• Driver memory recalls driver "presets" for power driver seat and outside mirrors
• Seats, ventilated driver and front passenger

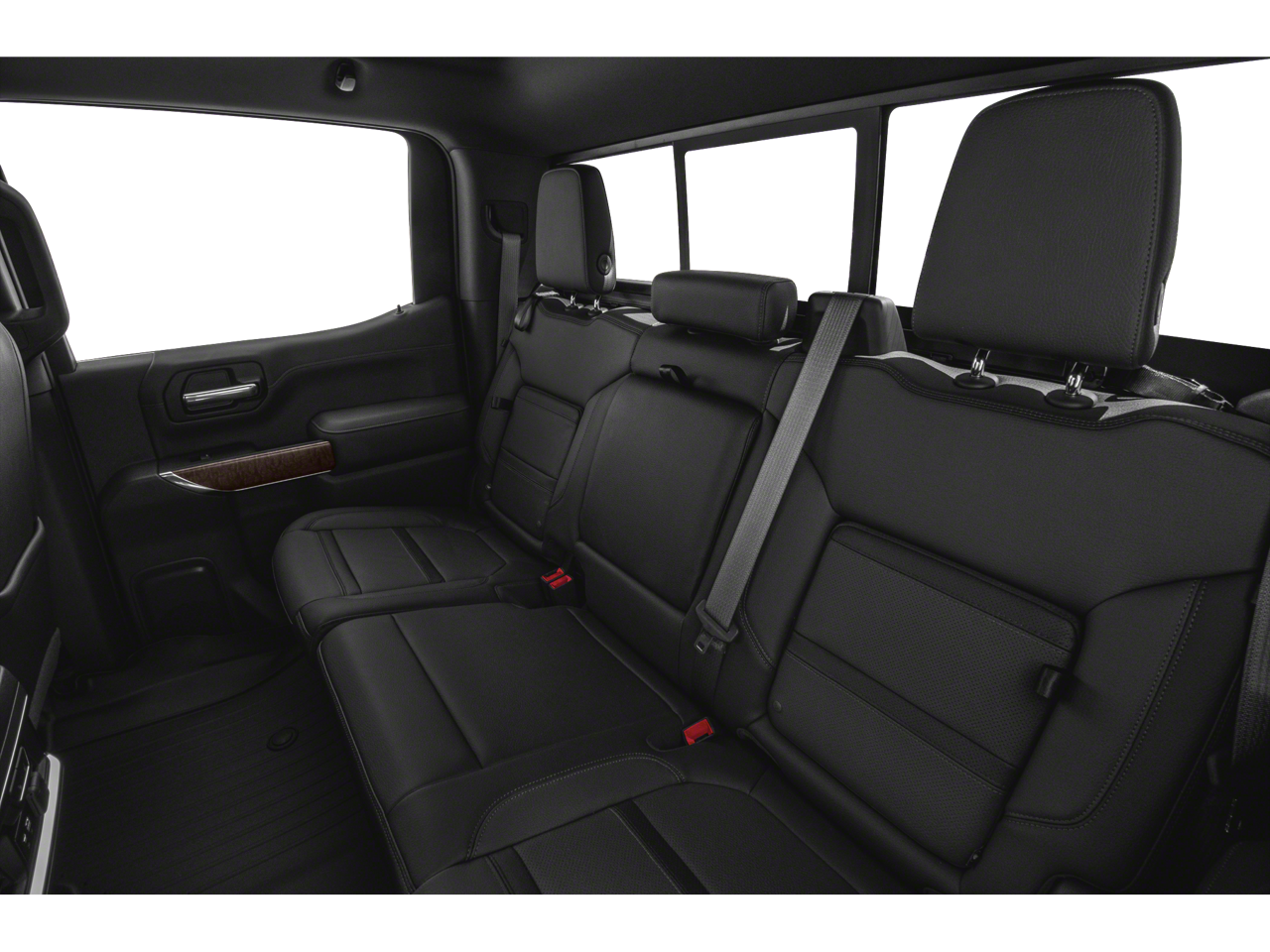

• Seat, Up-level Rear with Storage Package, 60/40 folding bench for Crew Cab models, includes full-length bench seat, seatback storage on left and right side, center fold out armrest with 2 cupholders, full cab width under-seat storage, (includes child seat top tether anchor) (Rear seat features leather seating surfaces.)

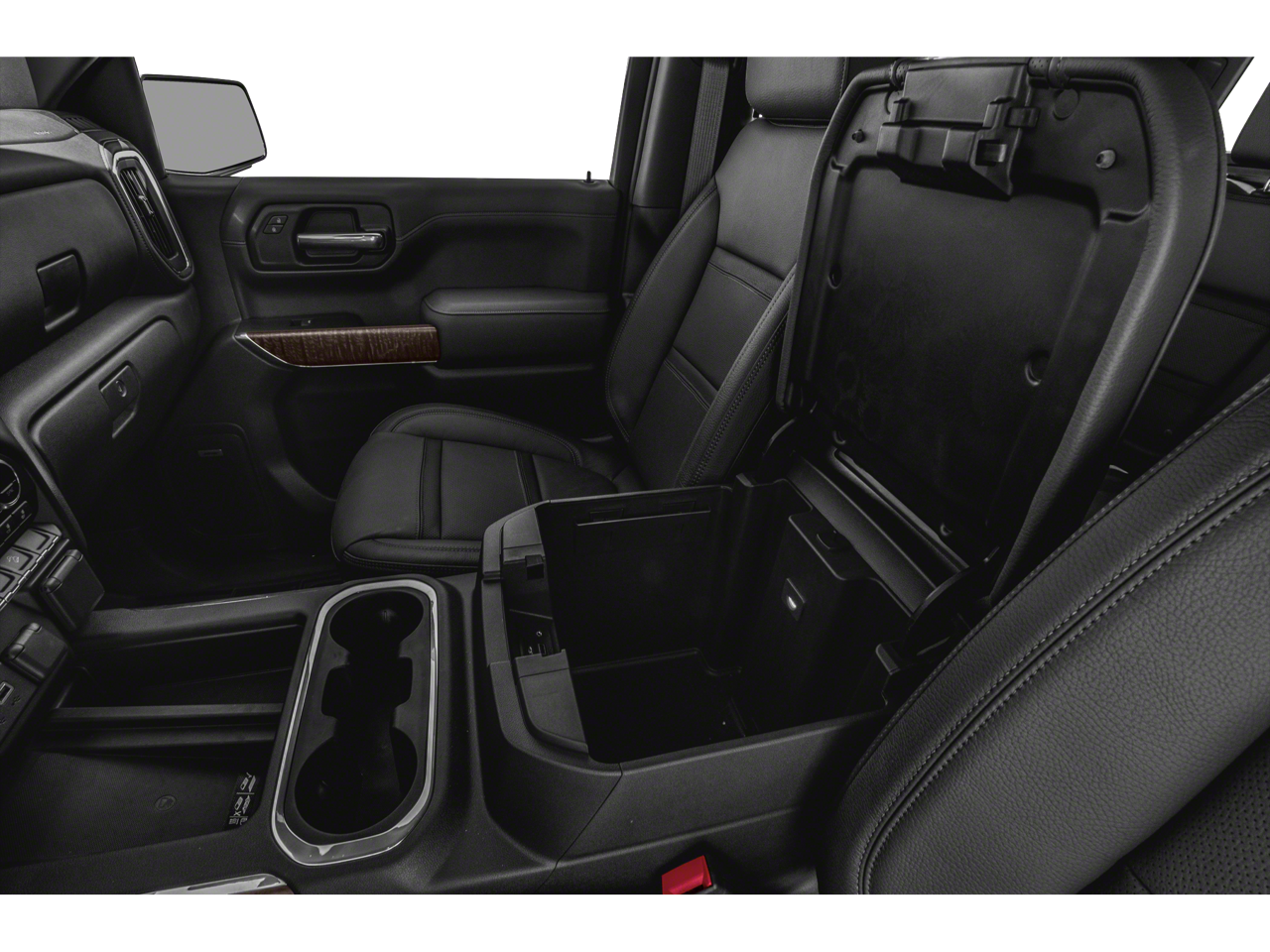

• Center Console, floor-mounted with cup holders, cell phone storage, power cord management, hanging file folder capability
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Unique premium carpet. Deleted when LPO floor liners are ordered or (BKF) Premium Floor Liners are ordered.)
• Floor mats, carpeted rear (Unique premium carpet. Deleted when LPO floor liners are ordered or (BKF) Premium Floor Liners are ordered.)

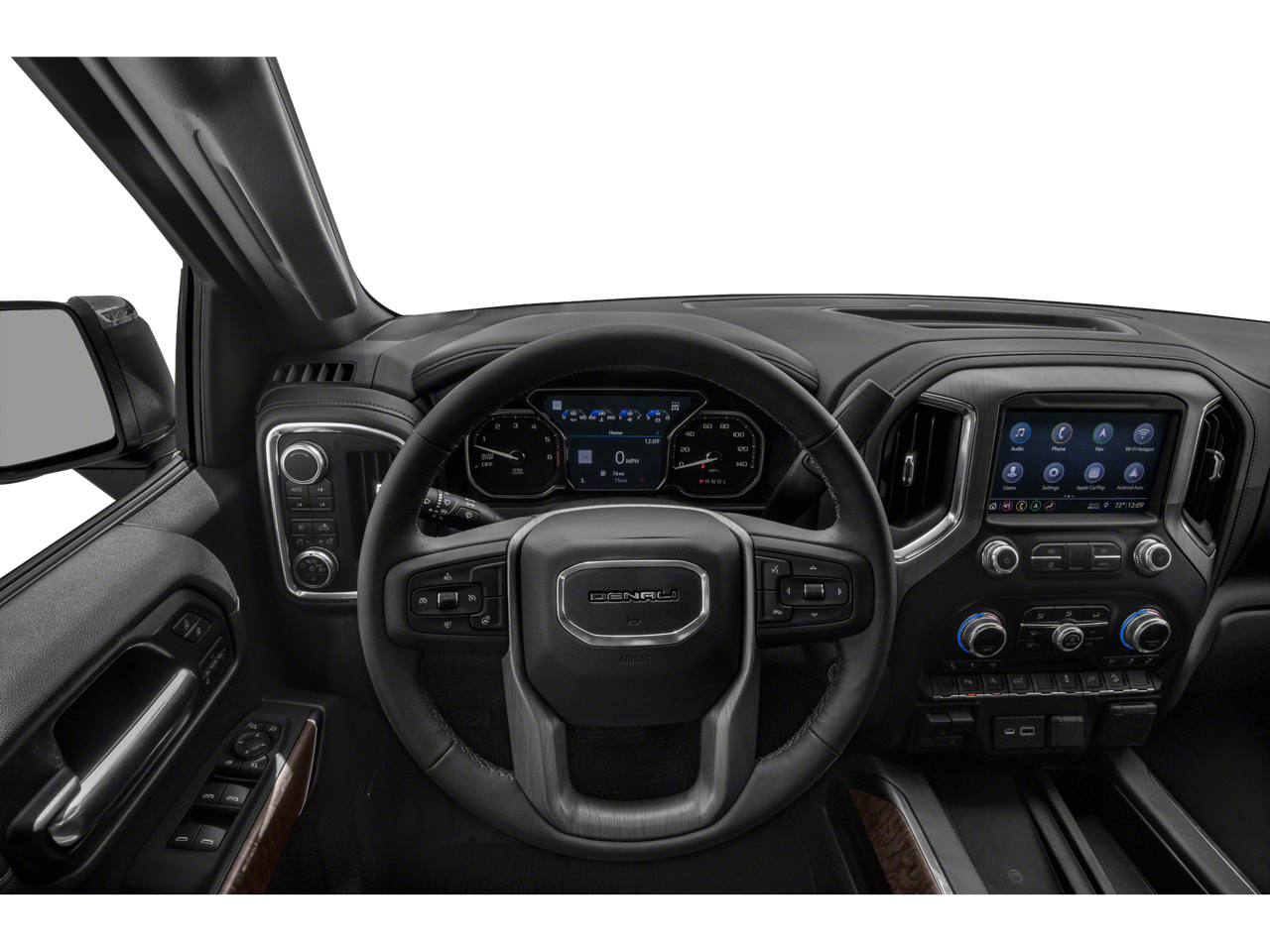

• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel, leather-wrapped
• Steering wheel, heated
• Driver Information Center, enhanced, 8" diagonal multicolor digital display includes analog speedometer and tachometer gauges
• In-vehicle Trailering App, System includes checklist, trailer maintenance reminders, trailer security alerts, trailer mileage, tow/haul reminder and trailer electrical diagnostics
• Compass, located in instrument cluster
• Exterior Temperature Display, located in radio display
• Brake lining wear indicator
• Windows, power front, drivers express up/down
• Window, power front, passenger express up/down
• Windows, power rear, express down
• Door locks, power
• Keyless Open and Start
• Remote vehicle starter system
• Universal Home Remote
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Steering column, lock control, electrical
• Wireless Charging
• USB ports, 2 (first row) located on instrument panel
• USB Ports (Inside Console with bucket seats), 2 also includes 1 SD card reader and auxiliary jack
• Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
• Power outlet, front auxiliary, 12-volt
• USB ports, dual, charge-only (2nd row)
• Power outlet, rear auxiliary, 12-volt
• Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet)
• Air conditioning, dual-zone automatic climate control
• Air vents, rear
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Hitch Guidance with Hitch View with image adjustment, Pan/Zoom/Tilt
• Hitch Guidance
• HD Rear Vision Camera
• Front and Rear Park Assist, ultrasonic
• Lane Change Alert with Side Blind Zone Alert
• Rear Cross Traffic Alert
• Safety Alert Seat
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)
• Rear Seat Reminder

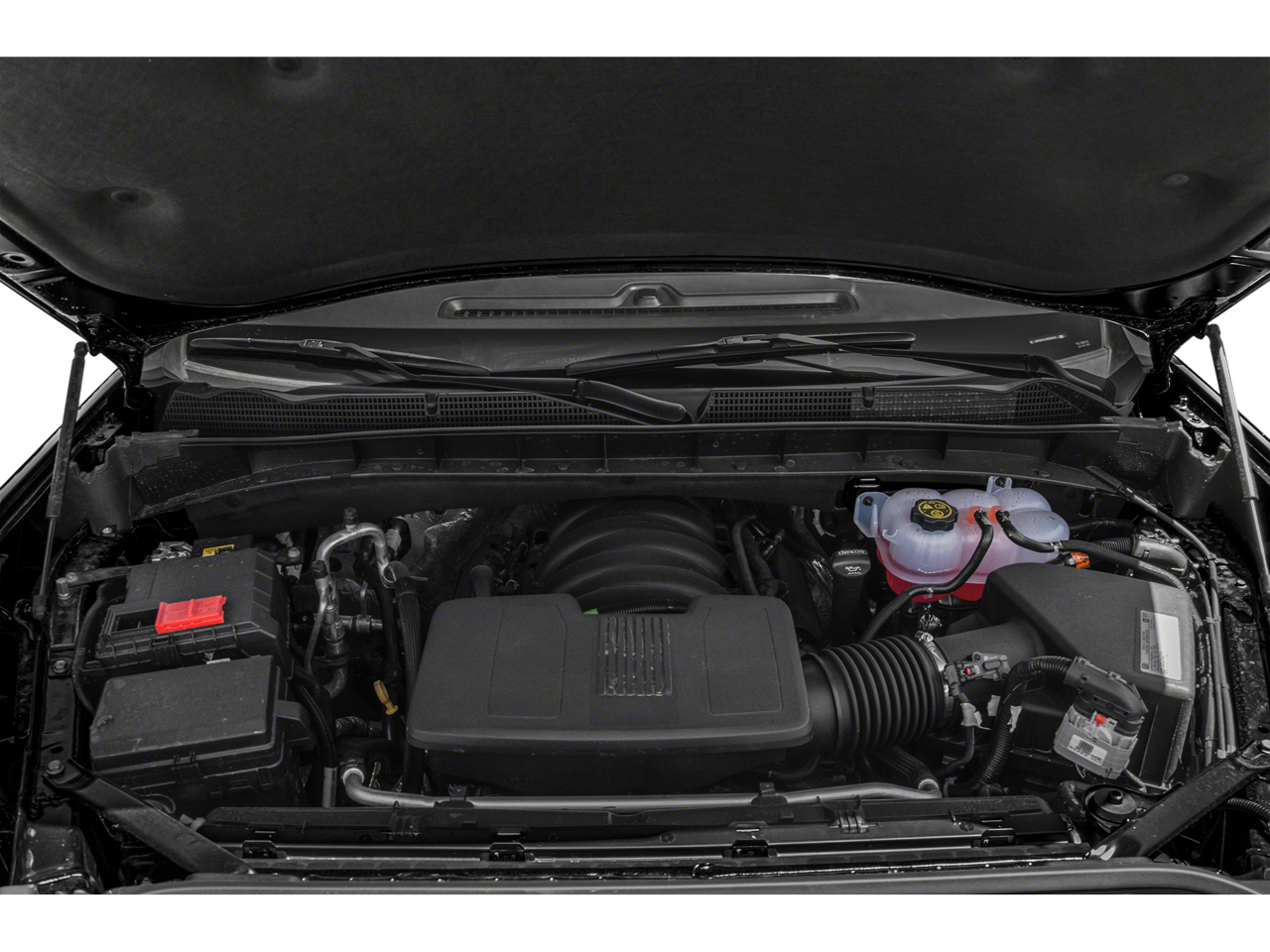

ENGINE, 6.2L ECOTEC3 V8

• (420 hp [313 kW] @ 5600 rpm
• 460 lb-ft of torque [624 Nm] @ 4100 rpm); featuring all-new Dynamic Fuel Management that enables the engine to operate in 17 different patterns between 2 and 8 cylinders
• depending on demand
• to optimize power delivery and efficiency

• Driver Alert Package I: Ultrasonic Front and Rear Park Assist; Rear Cross Traffic Alert; Lane Change Alert with Side Blind Zone Alert
• Driver Alert Package II: Forward Collision Alert; Lane Keep Assist with Lane Departure Warning; Front Pedestrian Braking; Following Distance Indicator; Automatic Emergency Braking; IntelliBeam Automatic High Beam On/off; Adaptive Cruise Control
• Technology Package: HD Surround Vision with 2 Trailer View Camera Provisions; Multicolor 15" Diagonal Head-Up Display; Bed View Camera; Rear Camera Mirror
• Denali Ultimate Package: GMC MultiPro Power Steps; Power Sunroof; Wheel Locks (set of 4); 22" X 9" Multi-Dimensional Polished Aluminum Wheels
• Preferred Equipment Group 5SA: Chrome Wheel to Wheel Assist Steps; 2 USB Ports (1st Row); Power Sliding Rear Window with Rear Defogger; Safety Alert Seat; Electric Rear-Window Defogger; Theft Deterrent System (unauthorized Entry); Signature Denali Grille; Heavy-Duty Air Filter; Compass; 120-Volt Instrument Panel Power Outlet; Heated Driver and Front Outboard Passenger Seating; Wireless Charging; Color-Keyed Carpeting Floor Covering; OnStar and GMC Connected Services Capable; Power Front Passenger Windows with Express Up/down; Power Rear Windows with Express Down; Integrated Trailer Brake Controller; Ventilated Driver and Front Passenger Seats; Manual Tilt-Wheel and Telescoping Steering Column; 275/60R20SL AT BW Tires; HD Rear Vision Camera; LED Cargo Area Lighting; Remote Vehicle Starter System; Hill Descent Control; 5.3L EcoTec3 V8 Engine; Floor-Mounted Center Console; 170 Amp Alternator; 20" X 9" Multi-Dimensional Polished Aluminum Wheels; Auxiliary External Transmission Oil Cooler; Electrical Lock Control Steering Column; Trailering Package; Chrome Recovery Hooks; Adaptive Ride Control Suspension; Steering Wheel Audio Controls; GMC Connected Access Capable; Universal Home Remote; 2-Speed Transfer Case; Deep-Tinted Glass; Spray-On Pickup Bed Liner with Denali Logo; Premium GMC Infotainment System Radio with Navigation; Power Front Windows with Driver Express Up/down; Rear Dual USB Charging-Only Ports; Keyless Open and Start; 4G LTE Wi-Fi Hotspot Capable; ProGrade Trailering System; Rear Wheelhouse Liners; 12-Volt Rear Auxiliary Power Outlet; 2 USB Ports; Auto-Locking Rear Differential; Power Door Locks
• Power Sunroof
• Hunter Metallic
• Wheel Locks (set of 4)
• Apple CarPlay/Android Auto smart device wireless mirroring
• Forward Collision Alert with Automatic Braking
• Front Pedestrian Braking
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• HD Rear Vision Camera w/Hitch View rear mounted camera
• Lane Keep Assist with Lane Departure Warning
• Adaptive cruise control
• Head-up display
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Heated rear seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Rear collision warning
• First-row sliding and tilting glass sunroof with express open/close activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• AutoTrac part and full-time 4WD
• EcoTec3 6.2L V-8 gasoline direct injection
• variable valve control
• premium unleaded
• engine with cylinder deactivation and 420HP
• EcoTec3 6.2L V-8
• Front wireless smart device charging
• Teen Driver restricted driving mode/alerts
• Smart key with hands-free access and push button start
• Keyfob window control
• Aerial view camera
• Push-button
• Video-feed rearview mirror
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Front mounted camera
• Right side camera
• Pickup box camera
• Left side camera
• Blind spot warning
• Following Distance Indicator
• GMC ProGrade Trailering System trailer light test
• GMC ProGrade Trailering System trailer light malfunction warning
• GMC ProGrade Trailering System trailer theft alarm
• Dual-zone front climate control
• IntelliBeam auto high-beam headlights
• Immobilizer
• Bose speakers
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer Sway Control (TSC) trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 860
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1775
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1950
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.23
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 50
• Shock Absorber Diameter - Rear (mm): 50
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QAE
• Rear Tire Order Code: QAE
• Spare Tire Order Code: QAQ
• Front Tire Size: 275/60R20SL
• Rear Tire Size: 275/60R20SL
• Spare Tire Size: 255/80R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.72
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.3
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
