• 3.42 axle ratio
• Electronically controlled throttle
• Electronic shift-on-the-fly transfer case
• Anti-spin rear axle
• 11.5" dual rear wheel axle ring gear diameter
• 5200# front axle w/hub extensions
• Four wheel drive
• 750-amp maintenance-free battery
• 136-amp alternator
• 6.3' pickup box
• Removable tailgate w/caliper latches
• Trailer tow wiring-inc: 4-pin connector
• Tow hooks
• 10500# GVWR
• HD front shock absorbers
• HD rear shock absorbers
• Front stabilizer bar
• Pwr steering
• Pwr 4-wheel anti-lock disc brakes
• Diesel exhaust brake

• 17" x 6" steel wheels -inc: bright wheel skins & center hubs (N/A w/AR9 Single Rear Wheel Group)
• LT235/80R17E all-season BSW tires (N/A w/AR9 Single Rear Wheel Group)
• Dual rear wheels (N/A w/PB5 or PDM Paint)
• 17" steel spare wheel
• Full size spare tire
• Winch type spare tire carrier
• Bright front bumper
• Bright rear bumper
• Front air dam
• Chrome bodyside molding
• Bright/bright grille
• Body color/bright front fascia
• Fog lamps
• Underhood lamp
• Cab clearance lamps
• Box & rear fender lamps
• Cargo lamp
• Black 6" x 9" pwr heated mirrors
• Tinted glass
• Pwr sliding rear window
• Variable speed intermittent windshield wipers

• AM/FM stereo w/CD player-inc: auxiliary input jack
• Sirius satellite radio -inc: 1-year service *N/A in AK or HI*
• (7) Infinity speakers
• Fixed long mast antenna

• Leather trim 40/20/40 bench seat
• 6-way pwr driver/front passenger seats
• Heated front seats
• Rear 60/40 split bench seat
• Front center seat cushion storage
• Carpeted floor covering
• Front/rear floor mats
• Mini floor console
• Leather-wrapped steering wheel
• Steering wheel audio controls
• Tilt steering column
• Sentry Key theft deterrent system

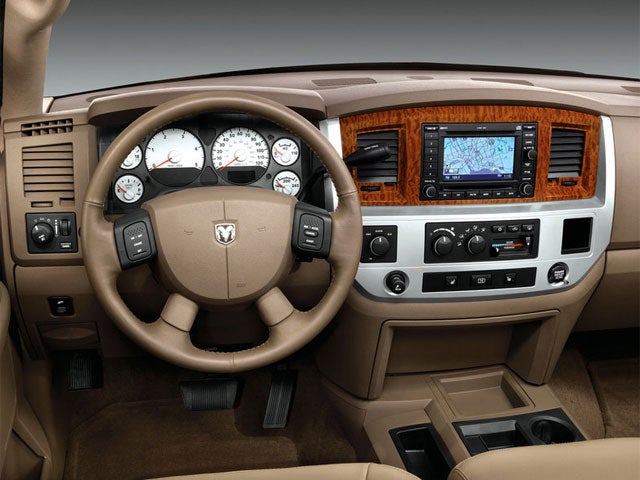

• Instrument cluster-inc: tachometer
• 120-MPH primary speedometer
• Pwr windows w/driver one-touch
• Pwr locks
• Remote keyless entry
• Speed control
• UConnect hands-free communication
• Security alarm
• Air conditioning w/dual zone temp control
• 12V pwr outlet
• Cigar lighter
• Auto dimming rearview mirror
• Overhead console w/map lights -inc: storage bin, electronic vehicle info center, universal garage door opener
• Passenger assist handle
• Dual illuminated visor vanity mirrors
• Rear courtesy/reading lamps
• Ash tray lamp
• Glove box lamp
• Bright interior accents
• Woodgrain instrument panel bezel
• Behind seat storage bin

• Advanced multistage front airbags
• Child safety rear door locks
• Front height adjustable shoulder belts
• Dual note horn

6.7L I6 CUMMINS TURBO DIESEL ENGINE

• (STD)

SUPPLEMENTAL FRONT SIDE AIRBAGS

• -inc front/rear side curtain airbags

• Uconnect handsfree wireless device connectivity
• Heated driver and front passenger seats
• Leather front seat upholstery
• Driver seat with 6-way directional controls
• Front passenger seat with 6-way directional controls
• Cruise control with steering wheel mounted controls
• 17 x 6-inch front and dual rear steel wheels
• Driver seat power fore/aft control and height adjustable control
• Part-time 4WD
• Cummins 6.7L I-6 diesel direct injection
• intercooled turbo
• diesel
• engine with 350HP
• Cummins 6.7L I-6
• Mechanical
• Dual-zone front climate control
• Sentry Key immobilizer
• Infinity speakers
• Leather rear seat upholstery
• 3 12V power outlets
• Front fog lights
• Leather steering wheel
• Manual reclining rear seats
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Chrome-clad wheel covers
• Dual rear wheels
• LT235/80SR17 AS BSW 649 RPM front and rear tires
• 2 airbags
• Driver front impact airbag
• Passenger front impact airbag
• Auto-locking doors
• Power rear windshield
• Intercooled turbo
• 6-speed manual
• Manual climate control
• Rear under seat climate control ducts
• Exterior temperature display
• Manual
• Reflector headlights
• Halogen headlights
• Delay-off headlights
• Cab clearance lights
• 40-20-40 split-bench front seat
• Manual driver seat lumbar
• Split-bench front seat
• Front seat center armrest
• Manual front passenger seat lumbar
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Split-bench rear seat
• Fold forward rear seatback

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4574
• Curb Weight - Rear (lbs): 3083
• Gross Vehicle Weight Rating Cap (lbs): 10500
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1680
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2800
• Suspension
• Suspension Type - Front: Live axle
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9350
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TBB
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Rear Tire Capacity (lbs): 3085
• Spare Tire Capacity (lbs): 3085
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Size (in): 17 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 13.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 160.5
• Length, Overall w/o rear bumper (in): 247.9
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 79.4
• Overhang, Front (in): 39.6
• Overhang, Rear w/o bumper (in): 47.9
• Front Bumper to Back of Cab (in): 163.1
• Cab to Axle (in): 36.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 65.1
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): 7.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 64.9
• Second Head Room (in): 40.5
• Second Leg Room (in): 44.2
• Second Shoulder Room (in): 66.5
• Second Hip Room (in): 64.4
• Summary

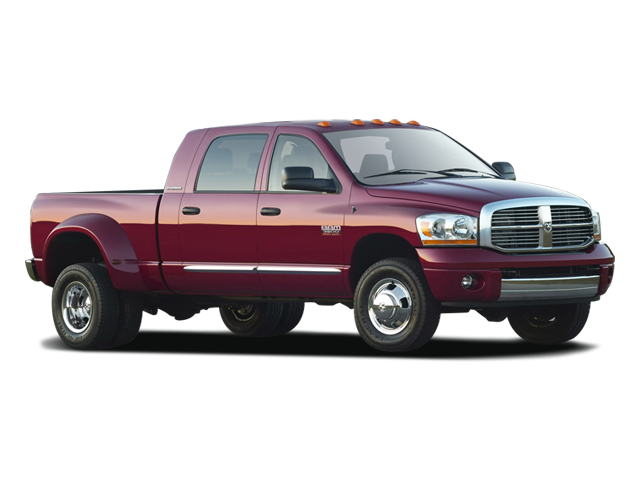

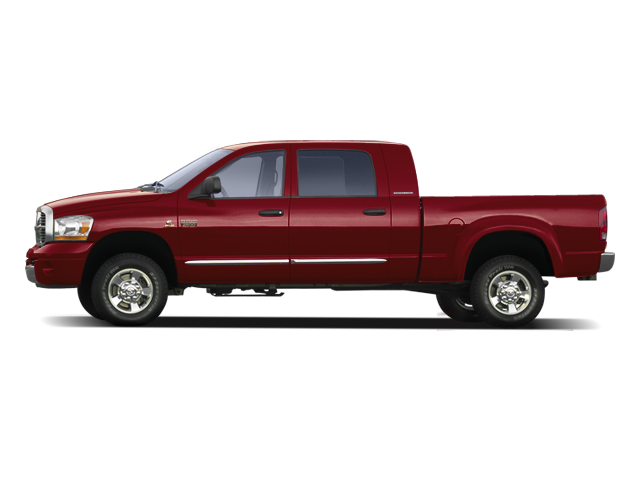

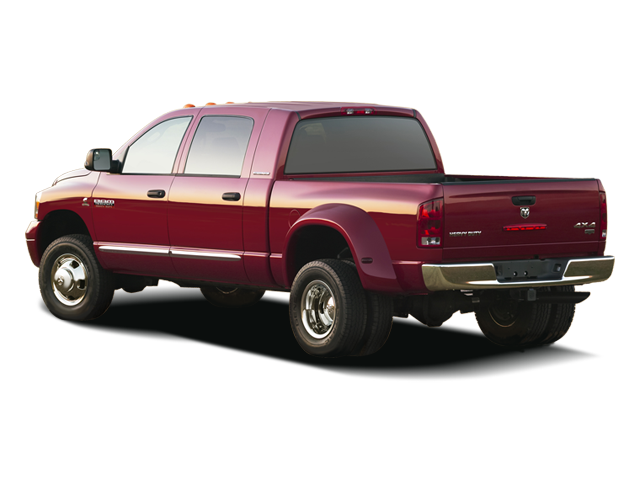

• Vehicle Name: Dodge Ram 3500
• Body Style: Mega Cab 6.3' Box
• Body Code: 160.5" WB
