• Tires, LT225/75R17E all-season, blackwall (Requires (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel). Includes 7 tires with (E63) Wideside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• Fog lamps, front, halogen
• Windshield washer fluid system, heated
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window. Included with (PCM) Work Truck Preferred Package.)
• Lamps, Smoked Amber roof marker (Standard on (C7W) 11,400 lbs. (5171 kg) GVWR only. With (GED) 9700 lbs. GVWR (single rear wheel) or (C4M) 9900 lbs. GVWR (single rear wheel), not available with (YF5) California state emissions requirements.)
• Wheels, 4 - 16" x 7.0" (40.6 cm x 17.8 cm) 8-lug steel (single rear wheel), Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Requires and only available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel).)
• Wheel trim, Chrome trim skins and chrome center caps (Requires (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel))
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Bumper, front chrome (Includes body-color bumper top caps)
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Air dam, Black
• Moldings, bodyside, body-colored

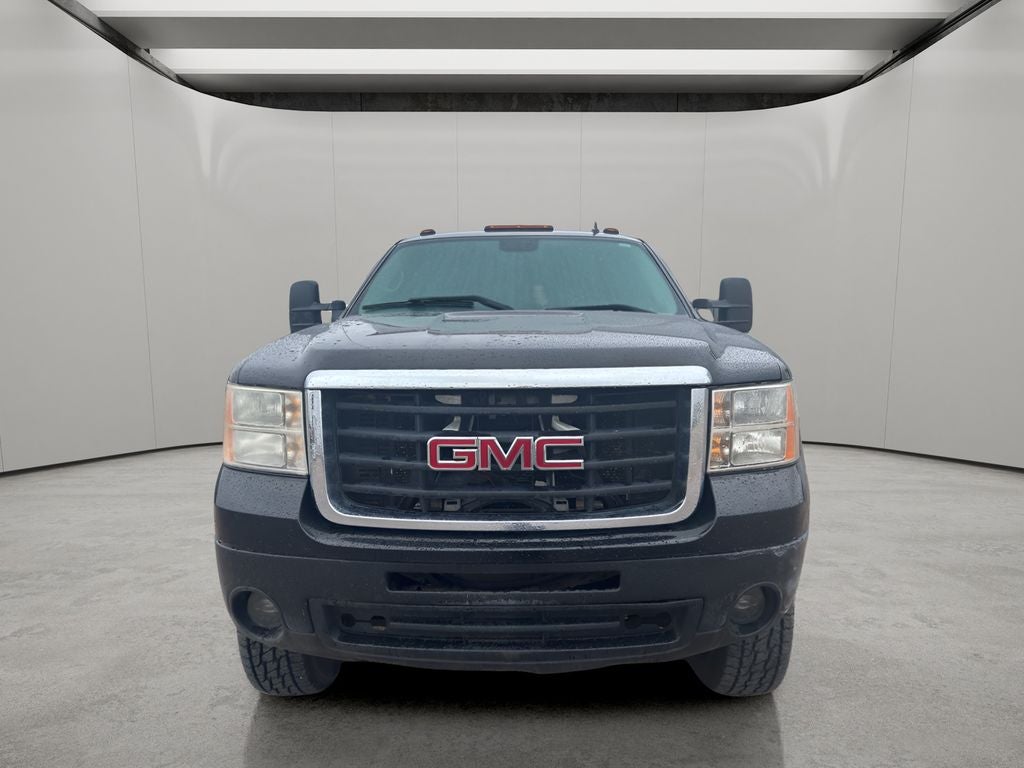

• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding Requires (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel)
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection, top of tailgate protection cap

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters, 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab models)
• Door locks, power
• Steering wheel controls, mounted audio controls
• Cruise control, electronic with set and resume speed, located on steering wheel
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Seat trim, Ultrasoft Leather-appointed
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down (Includes front passenger Express-down)
• Remote vehicle starter prep package, includes Remote Keyless Entry (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. (Remote Keyless Entry does not lock/unlock tailgate when (PDF) EZ-Lift Tailgate Package is ordered)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com. Not available with (UE0) OnStar, delete.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding, with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. If the order type is FDR, (UE0) OnStar delete will be forced on. Not available with a ship-to of Puerto Rico or the Virgin Islands. Remote Door Unlock requires (AU3) power door locks.)
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)

SLT PREFERRED EQUIPMENT GROUP

• includes standard equipment

EZ-LIFT TAILGATE PACKAGE

• includes (A60) locking tailgate and (PPA) EZ-Lift tailgate

TIRE, SPARE LT225/75R17E ALL-SEASON, BLACKWALL

• includes 17" (43.2 cm) steel spare wheel and spare tire carrier

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform and 2.5-inch receiver with 2" adapter
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness)
• and single wire for center high-mounted stop lamp

CARGO MANAGEMENT SYSTEM

• aluminum front and side C-channel rails located in the pickup box
• includes 4 adjustable tie-down hooks

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 8-way wiring harness routed to front of pickup box

• Preferred Equipment Group 4SA: Electronic Shift Transfer Case; Bose Premium Speaker System; Heated Front Bucket Seats; Solar-Ray Deep-Tinted Glass; Rear-Window Electric Defogger; Remote Vehicle Starter Prep Package; Dual-Zone Automatic Climate Control; Floor Console with Storage Compartment; Electronic Cruise Control with Set and Resume Speed; Heated Windshield Washer Fluid System; Front Halogen Fog Lamps; Power-Adjust/manual-fold Outside Rearview Mirrors; Auto-Dimming Inside Rearview Mirror; Ultrasoft Leather-Appointed Seat Trim; Leather-Wrapped Steering Wheel; Driver and Front Passenger Sliding Visors; Chrome Trim Skins and Chrome Center Caps; Keyed Cylinder Spare Tire Lock; Steering Wheel Mounted Audio Controls; Power Door Locks; Color-Keyed Carpeted Floor Covering; Power Windows with Driver Express-Down; Body-Colored Bodyside Moldings
• EZ-Lift Tailgate Package: EZ-Lift Tailgate; Locking Tailgate
• Spare LT225/75R17E AS BW Tire
• Power Sliding Rear Window
• Heated Vertical Camper Outside Mirrors
• Heavy-Duty Trailering Equipment
• Aluminum Front/side C-Channel Rails in Pickup Box
• Trailering Wiring Provisions
• Selective service internet access
• Cruise control with steering wheel mounted controls
• Heated driver and front passenger seats
• Leather front seat upholstery
• 17 x 6.5-inch front and dual rear painted steel wheels
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 365HP
• Duramax 6.6L V-8
• Mechanical
• Dual-zone front climate control
• Immobilizer
• Vehicle tracker
• Bose speakers
• OnStar Safe & Sound vehicle integrated emergency SOS system
• Leather rear seat upholstery
• Automatic climate control
• Front fog lights
• Leather and metal-look steering wheel
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Chrome hub wheel covers
• Wheel trim rings
• Manual extendable trailer mirrors

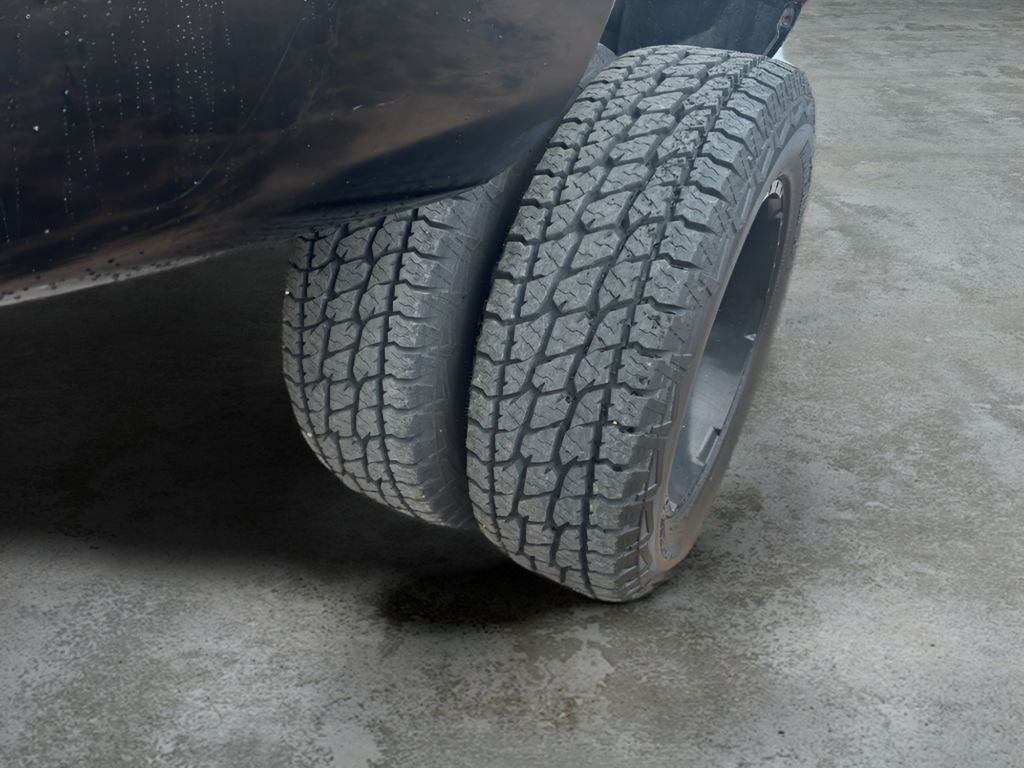

• Dual rear wheels
• LT225/75SR17 AS BSW front and rear tires
• 2 airbags
• Driver front impact airbag
• Cancellable front passenger air bag
• Auto-locking doors
• Power rear windshield
• Intercooled turbo
• Allison 6-speed automatic
• Selectable mode transmission
• Rear under seat climate control ducts
• 4 12V power outlets
• Exterior temperature display
• Transmission electronic control
• Sequential shift control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• Cab clearance lights
• Remote activated perimeter approach lighting
• Bucket front seats
• Driver seat with 8-way directional controls
• Turbo Diesel Engine
• Bose Premium Stereo
• Leather Seats
• Power Driver's Seat
• V8; Turbo Diesel; 6.6L
• Automatic; 6-Spd Allison w/Overdrive
• 4WD
• ABS (4-Wheel)
• Anti-Theft System
• Keyless Entry
• Keyless Start
• Air Conditioning
• Power Windows
• Power Door Locks
• Cruise Control
• Power Steering
• Tilt Wheel
• AM/FM Stereo
• Cassette
• CD/MP3 (Single Disc)
• Premium Sound
• XM Satellite
• OnStar
• Dual Air Bags
• Dual Power Seats
• Leather
• Daytime Running Lights
• Fog Lights
• Towing Pkg
• Premium Wheels

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 8200
• Curb Weight - Front (lbs): 3638
• Curb Weight - Rear (lbs): 2902
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3975
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QBD
• Rear Tire Order Code: QBD
• Spare Tire Order Code: ZBD

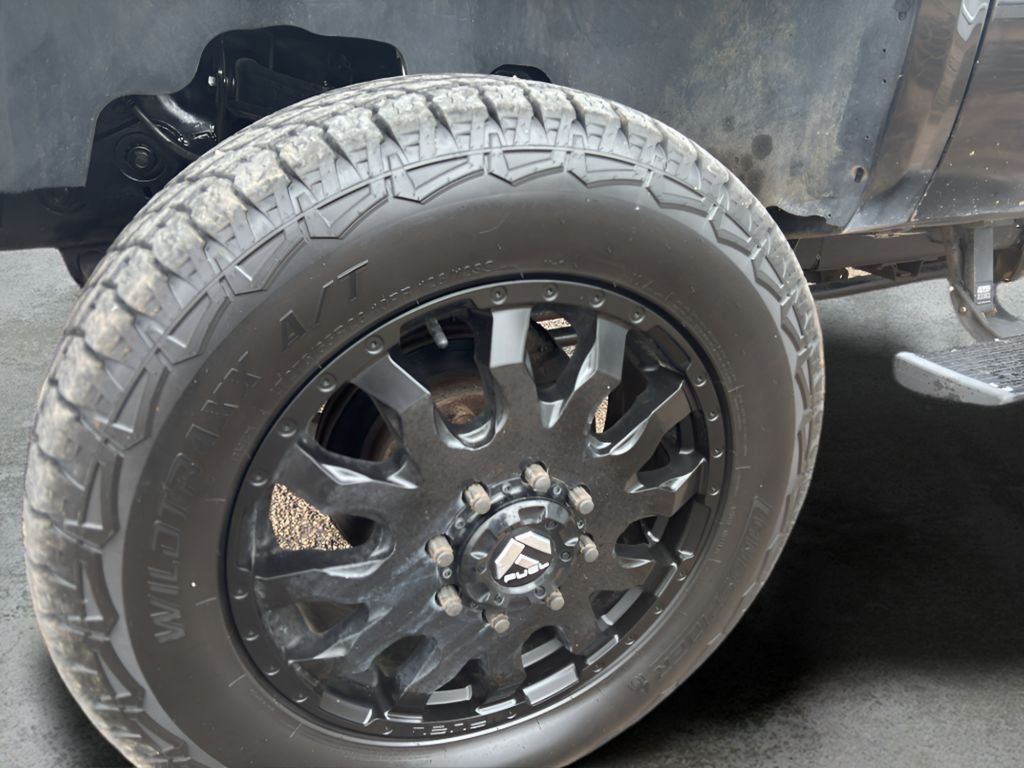

• Front Tire Size: LT225/75R17E
• Rear Tire Size: LT225/75R17E
• Spare Tire Size: LT225/75R17E
• Front Tire Capacity (lbs): 2405
• Front Tire Capacity (lbs): 2280
• Rear Tire Capacity (lbs): 2072
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 258.7
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 76.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 55.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 9.1

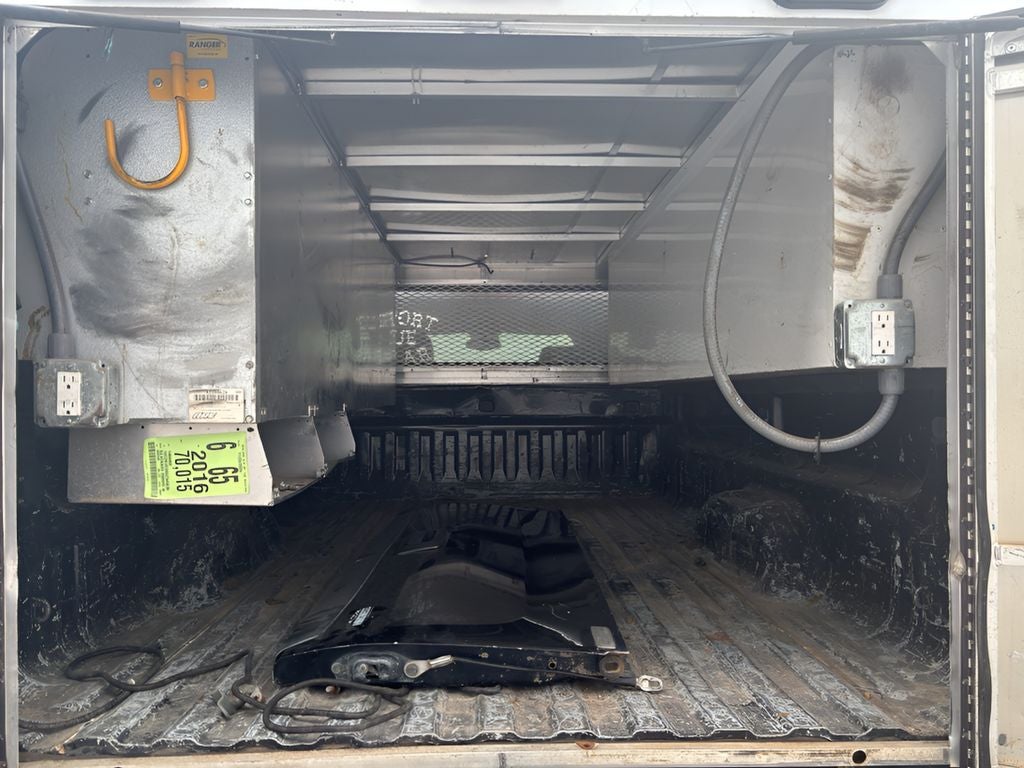

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.7
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.3
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

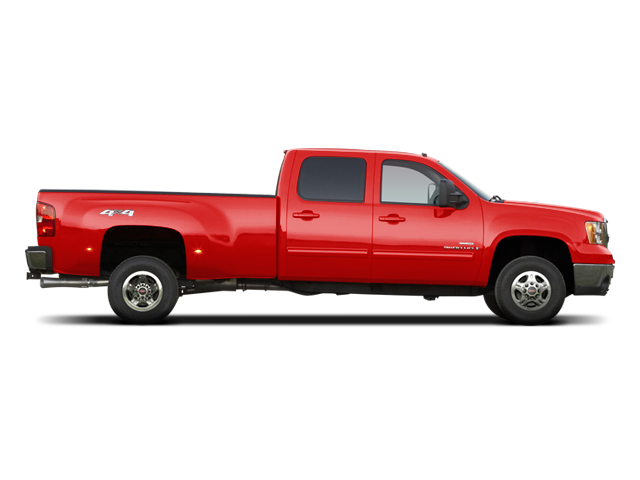

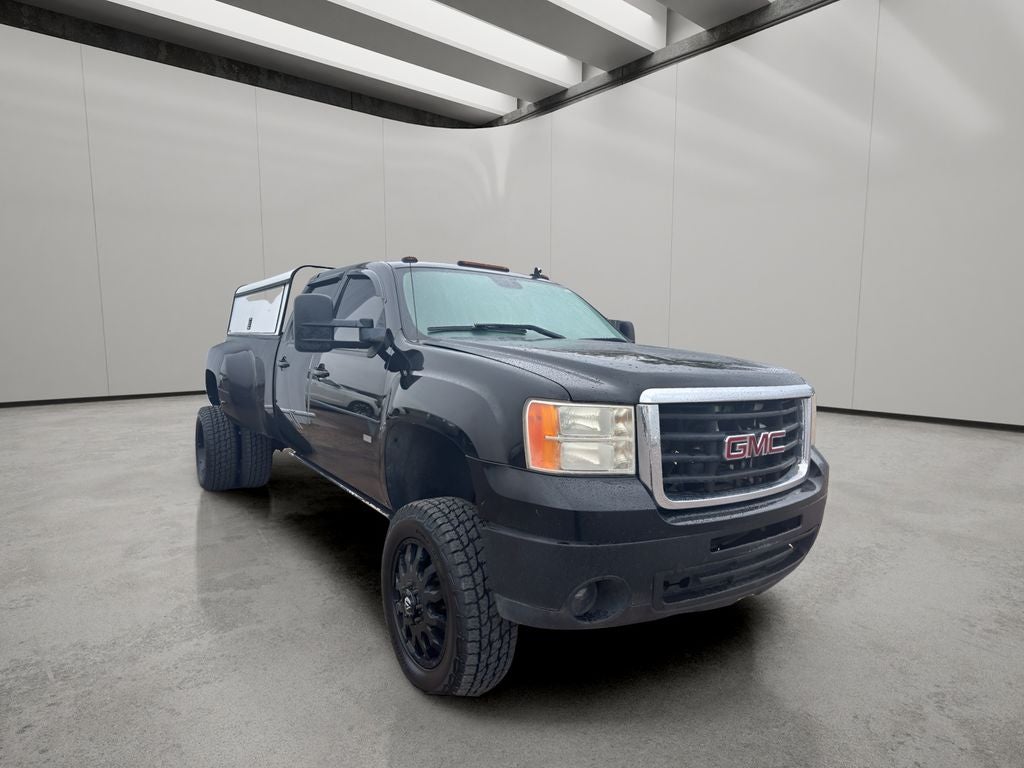

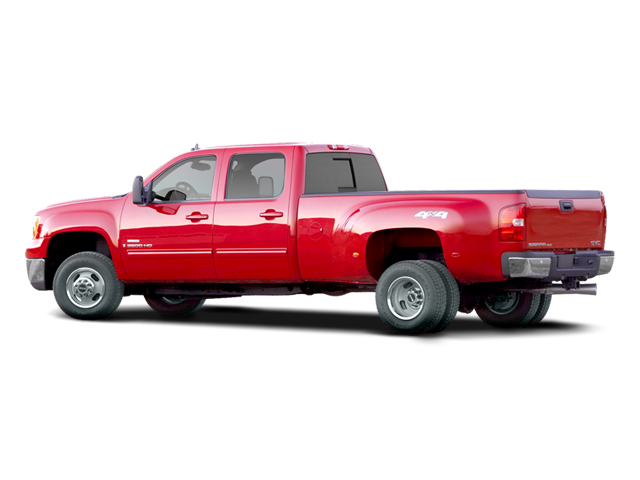

• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
